Raspberry Pi Stack
September 2025

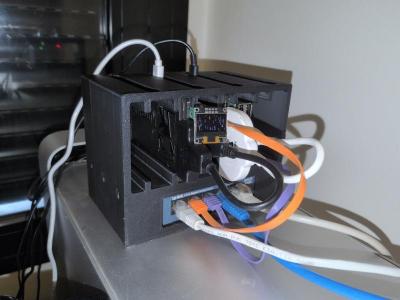

FreeCAD project to make stack of Raspberry Pi 4 and 5 - Room for 4 units
- Raspberry Pi 4
- Raspberry Pi 5
- 2 x SSD
- Switch tp-lin LS105G

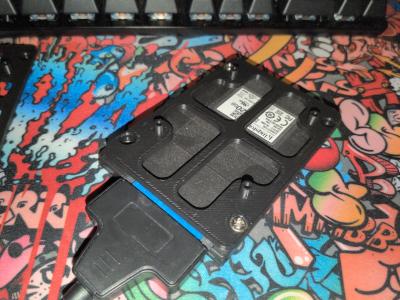

Base Plate to join SSD drives to Raspberry - I used a little auto thread screws to fix the raspi to the base support , and normal SSD screws to fix this support to the SSD.

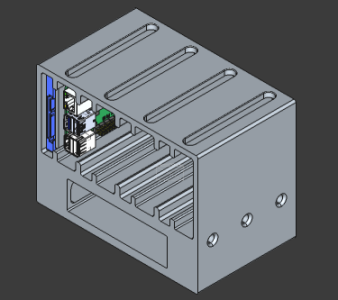

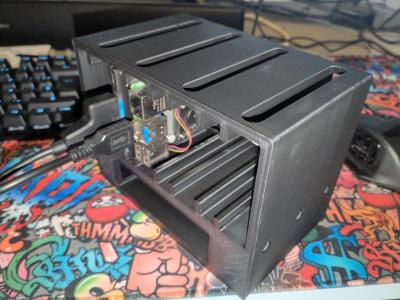

The Big Base has internal ducts for ventilation ( see 3 lateral holes ) for switch ventilation.
NOTE
The holes in the top should be 1 mm to the left , beacuse the Raspi5 cable (white in pictures) is plugged not to much clean let's say. For me is OK , I dont want to print all the base again for that.
If you like this concept , ii is agood start point. fell free to use and modificate.
